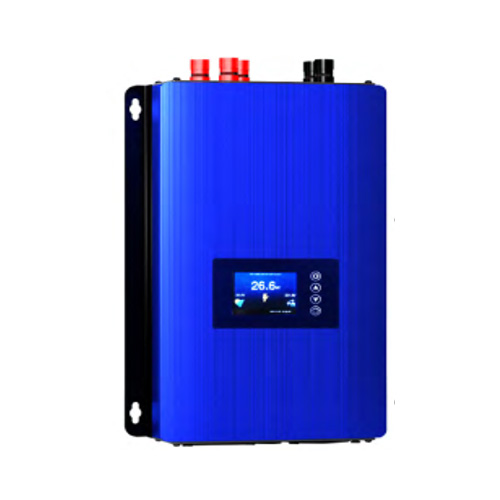

Wind turbine grid-tie inverterHome > Products > Wind turbine grid-tie inverter

Input voltage range

45-90VDC

Max output power

1000W

Nominal output voltage / range

230V / 185-265V

Frequency range

47.5-51.5 for 50hz,  59.3-60.5 for 60hz

Power Factor

>0.95

Output waveform

pure sine wave

Max efficiency

>92%

MPPT Efficiency

99%

Over Current Protection

Yes

Over Temperature Protection

Yes

Anit-Island Protection

Yes

Operating Temperature

-20℃~ 45℃

Storage Tmeperature

-40℃~ 65℃

Dimension

322x196x88mm

Weight

4.5KG

Approval /Cerficate

UL1741,  IEEE1547,VDE4105/CE
