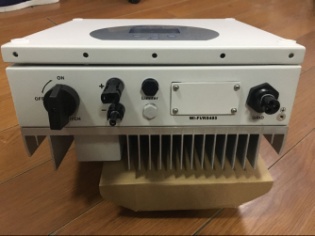

Single Phase String Power Inverter (1KW, 2KW, 3KW)

Model

SUN-1K-G

SUN-2K-G

SUN-3K-G

Max DC voltage input

600Vdc

MPPT operation range

100--480Vdc

Max DC input current

10A+10A

Number of MPPT/Strings per MPPT

1/1

Rated output power

1KW

2KW

3KW

Rated grid voltage

220V/230V/240V

Grid voltage range

180--265Vac(optional)

Operation phase

Single phase

Output power factor

>0.99

Grid current THD

<3%

Rated grid frequency

50/60Hz

Frequency range

47.5-51.5Hz/58-62Hz(optional)

Max efficiency

97.2%

Protection

DC reverse polarity;AC short circuit protection;temperature protection;Lightning protection;islanding protection;

Size

385*455*165mm

Weight



Topology

Transformerless

Internal consumption

<1W(Night)

Operating temperature

-25--60℃

Ingress protection

IP65

Interface

RS485 RS232

EMC

EN61000-6-1,EN61000-6-3



Single Phase String Power Inverter (3.6K, 5K)

Model

SUN-5K-G

SUN-3.6K-G

Max DC voltage input

600Vdc

MPPT operation range

100--480Vdc

Max DC input current

10A+10A

Number of MPPT/Strings per MPPT

2/2

Rated output power

5KW

3.6KW

Rated grid voltage

220V/230V/240V

Grid voltage range

180--265Vac(optional)

Operation phase

Single phase

Output power factor

>0.99

Grid current THD

<3%

Rated grid frequency

50/60Hz

Frequency range

47.5-51.5Hz/58-62Hz(optional)

Max efficiency

97.2%

Protection

DC reverse polarity;AC short circuit protection;temperature protection;Lightning protection;islanding protection;

Size

385*455*165mm

Weight

13.5Kg

Topology

Transformerless

Internal consumption

<1W(Night)

Operating temperature

-25--60℃

Ingress protection

IP65

Interface

RS485 RS232

Certification standard

NB-T32004

Operation surrounding humidity

0--100%

EMC

EN61000-6-1,EN61000-6-3


Three Phase String Power Inverter 10KW, 12KW, 15KW, 18KW


无标题文档

Model

SUN-10K

Max DC voltage input

1000Vdc

MPPT operation range

200--800Vdc

Max DC input current

18A+18A

Number of MPPT/Strings per MPPT

2/2

Rated output power

10KW

Rated grid voltage

380V

Rated gird output current

15A

Grid voltage range

320--460Vac(optional)

Operation phase

Three phase

Output power factor

>0.99

Grid current THD

<3%

Rated grid frequency

50/60Hz

Frequency range

47-52Hz or 57-62Hz(optional)

Max efficiency

98.1%

Protection

DC reverse polarity;AC short circuit protection;temperature protection;Lightning protection;islanding protection

Size

455*555*265mm

Weight

37Kg

Topology

Transformerless

Operating temperature

<1W(Night)

Operating temperature

-25--60℃

Ingress protection

IP65

Interface

RS485 RS232  WIFI

Certification standard

NB-T32004

Operation surrounding humidity

0--95%

EMC

EN61000-6-1,EN61000-6-3


Model

SUN-12K

Max DC voltage input

1000Vdc

MPPT operation range

200--800Vdc

Max DC input current

18A+18A

Number of MPPT/Strings per MPPT

2/2

Rated output power

12KW

Rated grid voltage

380V

Rated gird output current

18A

Grid voltage range

320--460Vac(optional)

Operation phase

Three phase

Output power factor

>0.99

Grid current THD

<3%

Rated grid frequency

50/60Hz

Frequency range

47-52Hz or 57-62Hz(optional)

Max efficiency

98.2%

Protection

DC reverse polarity;AC short circuit protection;temperature protection;Lightning protection;islanding protection

Size

455*555*265mm

Weight

37Kg

Topology

Transformerless

Operating temperature

<1W(Night)

Operating temperature

-25--60℃

Ingress protection

IP65

Interface

RS485 RS232  WIFI

Certification standard

NB-T32004

Operation surrounding humidity

0--95%

EMC

EN61000-6-1,EN61000-6-3


Model

SUN-15K

Max DC voltage input

1000Vdc

MPPT operation range

200--800Vdc

Max DC input current

18A+18A

Number of MPPT/Strings per MPPT

2/2

Rated output power

15KW

Rated grid voltage

380V

Rated gird output current

22.7A

Grid voltage range

320--460Vac(optional)

Operation phase

Three phase

Output power factor

>0.99

Grid current THD

<3%

Rated grid frequency

50/60Hz

Frequency range

47-52Hz or 57-62Hz(optional)

Max efficiency

98.3%

Protection

DC reverse polarity;AC short circuit protection;temperature protection;Lightning protection;islanding protection

Size

455*555*265mm

Weight

37Kg

Topology

Transformerless

Operating temperature

<1W(Night)

Operating temperature

-25--60℃

Ingress protection

IP65

Interface

RS485 RS232 WIFI

Certification standard

NB-T32004

Operation surrounding humidity

0--95%

EMC

EN61000-6-1,EN61000-6-3


Model

SUN-18K

Max DC voltage input

1000Vdc

MPPT operation range

200--800Vdc

Max DC input current

18A+18A

Number of MPPT/Strings per MPPT

2/2

Rated output power

18KW

Rated grid voltage

380V

Rated gird output current

27.2A

Grid voltage range

320--460Vac(optional)

Operation phase

Three

Output power factor

>0.99

Grid current THD

<3%

Rated grid frequency

50/60Hz

Frequency range

47-52Hz or 57-62Hz(optional)

Max efficiency

98.3%

Protection

DC reverse polarity;AC short circuit protection;temperature protection;Lightning protection;islanding protection

Size

455*555*265mm

Weight

37Kg

Topology

Transformerless

Operating temperature

<1W(Night)

Operating temperature

-25--60℃

Ingress protection

IP65

Interface

RS485 RS232 WIFI

Certification standard

NB-T32004

Operation surrounding humidity

0--95%

EMC

EN61000-6-1,EN61000-6-3

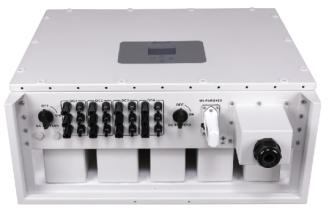

25KW、35KW、50KW

Model

SUN-25K

Max DC voltage input

1000Vdc

MPPT operation range

200--800Vdc

Max DC input current

18A+18A+18A+18A

Number of MPPT/Strings per MPPT

4/2

Rated output power

25KW

Rated grid voltage

380V

Rated gird output current

37.9A

Grid voltage range

320--460Vac(optional)

Operation phase

Three phase

Output power factor

>0.99

Grid current THD

<3%

Rated grid frequency

50/60Hz

Frequency range

47-52Hz or 57-62Hz(optional)

Max efficiency

98.6%

Protection

DC reverse polarity;AC short circuit protection;temperature protection;Lightning protection;islanding protection;

Size

700*575*309mm

Weight

60Kg

Topology

Transformerless

Internal consumption

<1W(Night)

Operating temperature

-25--60℃

Ingress protection

IP65

Interface

RS485 RS232 WIFI

Certification standard

IEC61727

Operation surrounding humidity

0--95%


Model

SUN-35K

Max DC voltage input

1000Vdc

MPPT operation range

200--800Vdc

Max DC input current

18A+18A+18A+18A

Number of MPPT/Strings per MPPT

4/2

Rated output power

35KW

Rated grid voltage

380V

Rated gird output current

53A

Grid voltage range

320--460Vac(optional)

Operation phase

Three phase

Output power factor

>0.99

Grid current THD

<3%

Rated grid frequency

50/60Hz

Frequency range

47-52Hz or57-62Hz(optional)

Max efficiency

98.6%

Protection

DC reverse polarity;AC short circuit protection;temperature protection;Lightning protection;islanding protection

Size

700*575*309mm

Weight

60Kg

Topology

Transformerless

Internal consumption

<1W(Night)

Operating temperature

-25--60℃

Ingress protection

IP65

Interface

RS485 RS232 WIFI

Certification standard

IEC61727

Operation surrounding humidity

0--95%

EMC

EN61000-6-1,EN61000-6-3



Model

SUN-50K

Max DC voltage input

1000Vdc

MPPT operation range

200--800Vdc

Max DC input current

28.5A+28.5A+28.5A+28.5A

Number of MPPT/Strings per MPPT

4/3

Rated output power

50KW

Rated grid voltage

380V

Rated gird output current

75.8A

Grid voltage range

320--460Vac(optional)

Operation phase

Three phase

Output power factor

>0.99

Grid current THD

<3%

Rated grid frequency

50/60Hz

Frequency range

47-52Hz or 57-62Hz(optional)

Max efficiency

98.8%

Protection

DC reverse polarity;AC short circuit protection;temperature protection;Lightning protection;islanding protection

Size

700*575*309mm

Weight

60Kg

Topology

Transformerless

Internal consumption

<1W(Night)

Operating temperature

-25--60℃

Ingress protection

IP65

Interface

RS485 RS232 WIFI

Certification standard

IEC61727

Operation surrounding humidity

0--95%

EMC

EN61000-6-1,EN61000-6-3
