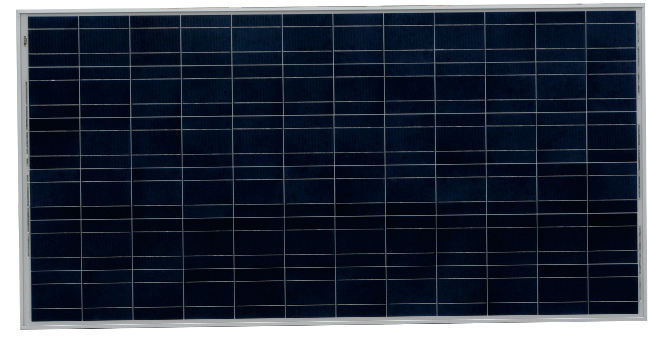

Solar Module (Poly)Home > Products > Solar Module (Poly)

Parameter Type	Max power(W)	Dimension (mm)	Imp (A)	Vmp (V)	Isc (A)	Voc (V)	Weight (KG)
ODA320-36-P	320W	1956×992×45	8.71	36.78	9.59	44.14	23.00
ODA310-36-P	310W	1956×992×45	8.22	37.72	9.05	44.67	23.00
ODA305-36-P	305W	1956×992×45	8.12	37.58	8.68	44.64	23.00
ODA300-36-P	300W	1956×992×45	8.02	37.42	8.58	44.08	23.00
ODA295-36-P	295W	1956×992×45	7.92	37.25	8.47	44.40	23.00
ODA290-36-P	290W	1956×992×45	7.83	37.08	8.37	44.32	23.00
ODA285-36-P	285W	1956×992×45	7.72	36.92	8.26	44.05	23.00
ODA280-36-P	280W	1956×992×45	7.59	36.98	8.10	44.31	23.00
ODA275-36-P	275W	1956×992×45	7.49	36.72	8.01	44.24	23.00
ODA270-36-P	270W	1956×992×45	7.42	36.40	7.94	44.17	23.00
ODA265-36-P	265W	1956×992×45	7.33	36.20	7.83	44.02	23.00
ODA260-30-P	260W	1640×992×40	8.21	31.70	9.03	38.04	18.60
ODA255-30-P	255W	1640×992×40	8.18	31.18	8.75	37.07	18.60
ODA250-30-P	250W	1640×992×40	8.06	31.02	8.62	36.99	18.60
ODA245-30-P	245W	1640×992×40	7.98	30.85	8.50	36.91	18.60
ODA240-30-P	240W	1640×992×40	7.86	30.72	8.36	36.60	18.60
ODA235-30-P	235W	1640×992×40	7.68	30.60	8.22	36.54	18.60
ODA230-30-P	230W	1640×992×40	7.58	30.36	8.11	36.42	18.60
ODA225-30-P	225W	1640×992×40	7.46	30.18	7.97	36.33	18.60
ODA220-30-P	220W	1640×992×40	7.31	30.12	7.81	36.30	18.60
ODA215-30-P	215W	1640×992×40	7.19	30.00	7.66	36.24	18.60
ODA230-27-P	230W	1485×990×40	8.20	28.08	8.76	33.37	17.00
ODA225-27-P	225W	1485×990×40	8.06	27.92	8.62	33.29	17.00
ODA220-27-P	220W	1485×990×40	7.93	27.76	8.48	33.21	17.00
ODA215-27-P	215W	1485×990×40	7.82	27.59	8.34	32.91	17.00
ODA210-27-P	210W	1485×990×40	7.66	27.42	8.19	32.83	17.00
ODA205-27-P	205W	1485×990×40	7.53	27.32	8.02	32.77	17.00
ODA200-27-P	200W	1485×990×40	7.38	27.11	7.89	32.67	17.00
ODA195-27-P	195W	1485×990×40	7.28	27.00	7.72	32.62	17.00
ODA205-24-P	205W	1330×990×35	8.25	24.99	8.78	29.68	16.4
ODA200-24-P	200W	1330×990×35	8.09	24.81	8.63	29.59	16.4
ODA195-24-P	195W	1330×990×35	7.95	24.65	8.46	29.32	16.4
ODA190-24-P	190W	1330×990×35	7.79	24.48	8.30	29.23	16.4
ODA185-24-P	185W	1330×990×35	7.67	24.29	8.15	29.13	16.4
ODA180-24-P	180W	1330×990×35	7.48	24.19	7.96	29.09	16.4
ODA175-24-P	175W	1330×990×35	7.33	24.00	7.80	28.99	16.4
ODA170-24-P	170W	1330×990×35	7.12	24.00	7.57	28.99	16.4
ODA150-18-P	150W	1485×668×35	8.10	18.61	8.62	22.19	11.60
ODA145-18-P	145W	1485×668×35	7.86	18.45	8.41	22.00	11.60
ODA140-18-P	140W	1485×668×35	7.66	18.28	8.19	21.89	11.60
ODA135-18-P	135W	1485×668×35	7.50	18.12	7.97	21.80	11.60
ODA130-18-P	130W	1485×668×35	7.27	18.00	7.72	21.74	11.60
ODA130-18-P	130W	1400×678×35	7.21	18.11	7.89	21.89	10.50
ODA120-18-P	120W	1250×678×35	6.38	18.81	7.02	22.58	9.76
ODA115-18-P	115W	1230×678×35	6.22	18.50	6.65	22.14	9.70
ODA110-18-P	110W	1120×678×35	5.84	18.90	6.23	22.54	8.90
ODA105-18-P	105W	1120×678×35	5.68	18.50	6.07	22.14	8.90
ODA100-18-P	100W	1100×678×35	5.43	18.50	5.78	22.14	8.80
ODA95-18-P	95W	1008×678×35	5.10	18.72	5.43	22.36	8.00
ODA90-18-P	90W	1008×678×35	4.92	18.36	5.25	22.00	8.00
ODA85-18-P	85W	930×678×30	4.58	18.72	4.86	22.36	7.00
ODA80-18-P	80W	905×678×30	4.40	18.25	4.69	21.96	7.20
ODA75-18-P	75W	770×678×30	4.18	18.12	4.60	21.74	6.10
ODA70-18-P	70W	770×678×30	3.82	18.50	4.05	22.14	6.10
ODA65-18-P	65W	720×678×30	3.49	18.83	3.69	22.46	5.50
ODA60-18-P	60W	690×678×30	3.36	18.01	3.70	21.61	5.20
ODA55-18-P	55W	540×860×30	3.00	18.36	3.21	22.00	5.20
ODA50-18-P	50W	540×770×30	2.70	18.50	2.89	22.14	4.50
ODA45-18-P	45W	540×770×30	2.48	18.36	2.62	22.00	4.30
ODA40-18-P	40W	540×620×25	2.19	18.25	2.35	21.96	4.00
ODA35-18-P	35W	360×820×25	1.93	18.50	2.02	22.14	3.40
ODA30-18-P	30W	360×678×25	1.64	18.25	1.76	21.96	3.20
ODA25-18-P	25W	570×356×25	1.33	18.83	1.42	22.46	2.60
ODA20-18-P	20W	510×355×20	1.10	18.25	1.17	21.96	2.20
ODA18-18-P	18W	355×490×20	0.99	18.19	1.09	21.74	2.20
ODA15-18-P	15W	355×390×18	0.82	18.36	0.87	22.00	1.90
ODA10-18-P	10W	275×360×18	0.55	18.25	0.59	21.96	1.30
ODA5-18-P	5W	195×275×18	0.28	18.25	0.31	21.96	0.70
ODA5-9-P	5W	195×275×17	0.52	9.64	0.57	11.57	0.65
ODA3-9-P	3W	195×195×17	0.33	9.24	0.36	11.09	0.48

Polycrystalline silicon
