Products

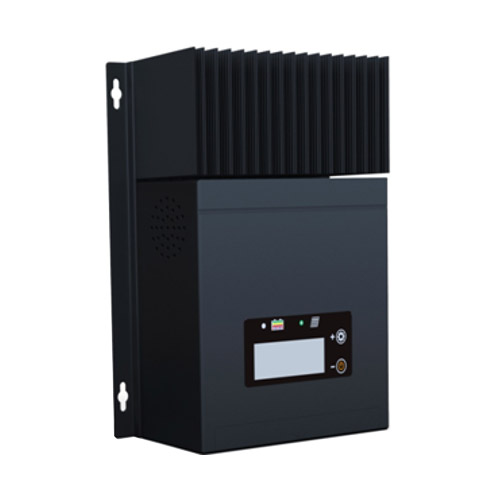

Off-grid solar charge controllerHome > Products > Off-grid solar charge controller

Model

MC4885N15

MC48100N15

MC4885N25

MC48100N25

System voltages

12V/24V/36V/48V

Static power consumption

0.54W

Max input voltage of solar energy (25°C)

150V

250V

Voltage range at MPP (max power point)

Battery voltage +2-120V

Battery voltage+2-180V

Charging current

            85A

          100A

           85A

          100A

Solar panel power (12V battery)

         1100W

          1320W

          1100W

          1320W

Solar panel power (24V battery)

          2200W

          2640W

          2200W

          2640W

Solar panel power (36V battery)

          3300W

          3960W

         3300W

          3960W

Solar panel power (48V battery)

          4400W

          5280W

          4400W

          5280W

Support battery type

Lead-acid batteries, colloidal batteries, open-ended batteries, lithium batteries

Temperature compensation coefficient

  • 3mV/°C/2V

Communication mode

TTL(3.3V / RS485 / Bluetooth module

Operating temperature range

-35°C - +60°C

Humidity

95%, no condensation

Weight

5.7kg

Product dimensions

314*227*121mm

Protection grade

IP32

Terminal blocks

35mm2 / 2AWG
