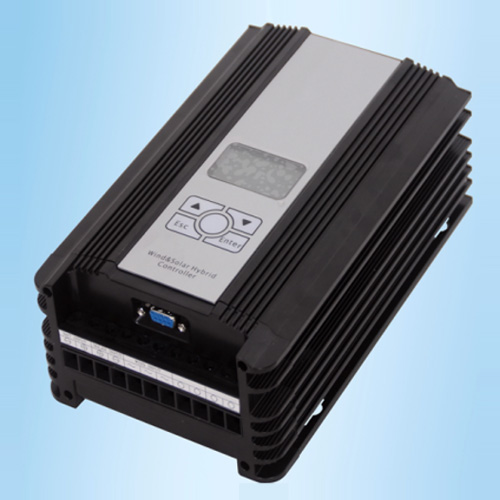

400W24V wind & solar hybrid controller
WinPower-T2-WSII-04-NNHN-1

Battery parameters

Applied battery voltage

24V

Battery protect method

Reverse connection protection (do not burn any components, with voice prompt); over voltage protection, under voltage protection (for street light and such kind of load)

Voltage at the over voltage protection point

29.0V±0.2V

Voltage at the over voltage recovery point

27.5V±0.2V

 Voltage at the under voltage protection point

21.0V±0.2V

Voltage at the under voltage  recovery point

23.0V±0.2V

Battery temperature compensation

5mv/℃/2V (settable) (optional component)

Wind turbines input parameters

Rated power of applied Wind turbines

400W/24V

Rated power of the terminal

18A dc (after rectification)

Max. input current of the terminal

30A dc (after rectification)

The default speed of the Wind turbines generation with limited speed

450 Rpm

The default current of the Wind turbines generation with limited current

30A (settable)

Wind turbines protection method

over rev protection, over current protection, induction lightening protection

Unloading method

PWM stepless high-frequency soft unloading (built-in)

MPPT function

Boost MPPT model ( automatic tracking or 5 segments curve tracking)

Input current of MPPT channel

12A

PV input parameters

Rated input current of applied PV

300W/24V(standard)
1000W/24V(optional)

Rated input current of terminal

12A(standard)
30A(optional)

Charging voltage drop

<0.2V

PV protection methods

Reverse connection protection (voice prompt)

Unloading method

Open circuit unloading

Discharge the output port parameters

output

2 outputs

Current of each output

12A

Output protection methods

Over current protection (15A/30sec.  18A/0.4sec.),  short-circuit protection (current > 150A)

Output control methods

 light control, time control, reverse output, PWM output (250HZ, only the 2nd output has it)

Others

Auxiliary function

Monitor of air temperature inside controller, temperature of unloading parts and Wind turbines MPPT components, and also the monitor of control terminals installed on the inversion (with voice prompt)

Display mode

Liquid crystal (LCD) display

Communication mode

RS232(5V electrical level)/RS485 (standard)
Short-range wireless (optional)

Displayed parameters

Wind turbines input voltage/current/power/generated energy/rev/unloading current
PV input voltage/current/power/generated energy
Battery voltage/charging current/power/total charging capacity/battery status information
output current/power/abnormal information of the 2nd output port

Power consumption in standby mode(screen backlight closed)

About 20ma /24V system

Operating mode

3M foil key operation (4 keys)

Working temperature / humidity range (environment)

-40~+80℃/20~85%RH(non condensing)

Protection grade

IP41

Controller size (L*W*H)

175*148m*84mm

Net weight

1.8kg



1000W48V wind & solar hybrid controller
WinPower-T4-WS-10-NNHN-1

Battery parameters

Applied battery voltage

48V

Battery protect method

Reverse connection protection (do not burn any components, with voice prompt); over voltage protection, under voltage protection (for street light and such kind of load)

Voltage at the over voltage protection point

58.0V±0.3V

Voltage at the over voltage recovery point

55.0V±0.3V

Voltage at the under voltage protection point

42.0V±0.3V

Voltage at the under voltage  recovery point

46.0V±0.3V

Battery temperature compensation

5mv/℃/2V (settable) (optional component)

Wind turbines input parameters

Rated power of applied Wind turbines

1000W/48V

Rated power of the terminal

25A dc (after rectification)

Max. input current of the terminal

30A dc (after rectification)

The default speed of the Wind turbines generation with limited speed

450 Rpm

The default current of the Wind turbines generation with limited current

25A (settable)

Wind turbines protection method

over rev protection, over current protection, induction lightening protection

Unloading method

outer unloading device

MPPT function

Boost MPPT model ( automatic tracking or 5 segments curve tracking)

Input current of MPPT channel

12A

PV input parameters

Rated input current of applied PV

1000W/48V(standard)  2000W/48V(optional)

Rated input current of terminal

15A(standard)        30A(optional)

Charging voltage drop

<0.2V

PV protection methods

Reverse connection protection (voice prompt)

Unloading method

Open circuit unloading

Others

Auxiliary function

Monitor of air temperature inside controller, temperature of unloading parts and Wind turbines MPPT components, and also the monitor of control terminals installed on the inversion (with voice prompt)

Display mode

Liquid crystal (LCD) display

Communication mode

RS232(5V electrical level) (standard),RS485/ Short-range wireless (optional)

Displayed parameters

Wind turbines input voltage/current/power/generated energy/rev/unloading current
PV input voltage/current/power/generated energy
Battery voltage/charging current/power/total charging capacity/battery status information

Power consumption in standby mode(screen backlight closed)

About 20ma /24V system

Operating mode

3M foil key operation (4 keys)

Working temperature / humidity range (environment)

-40~+80℃/20~85%RH(non condensing)

Protection grade

IP41

Controller size (L*W*H)

235mm*148mm *84mm

Net weight

2.5KG + Unloader weight 3.8kg
